How to choose the positioning method and clip the key for SEC-E9 key machine

The following video teaches points:
Toyota, Honda, Volkswagen, Buick key clips and positioning options to explain.
Choose the positioning method and clip the key for SEC-E9 key machine
Operation points for attention:
1.1. Take TOY43 Toyota Key as an example, enter “Data Search” and input “TOY43” , select “SILCA” and select the first 10 teeth;

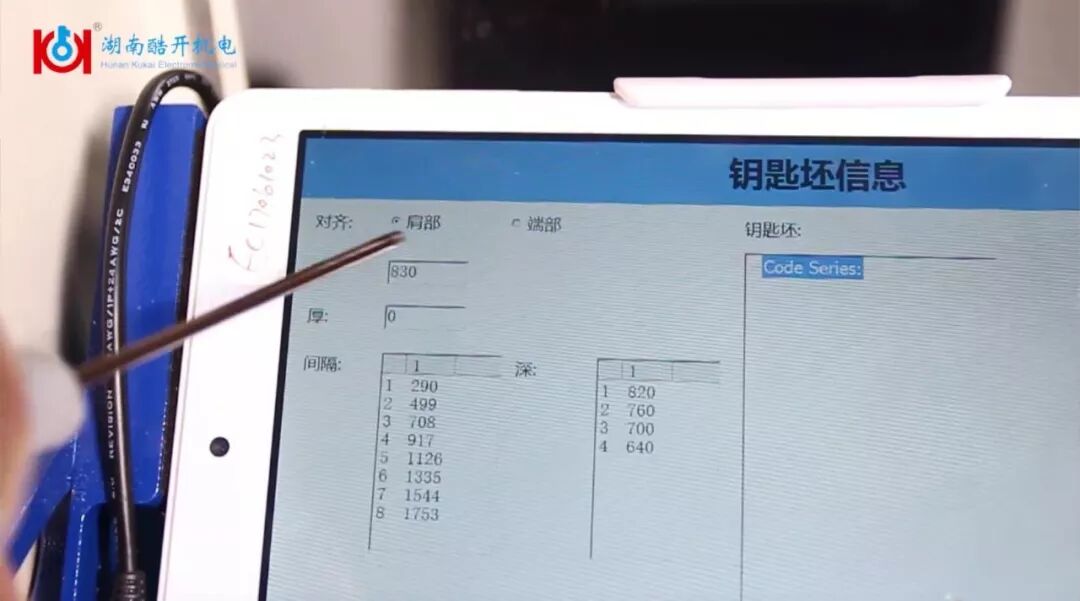

1.2, enter the bottom "menu" - "information", view the positioning method;

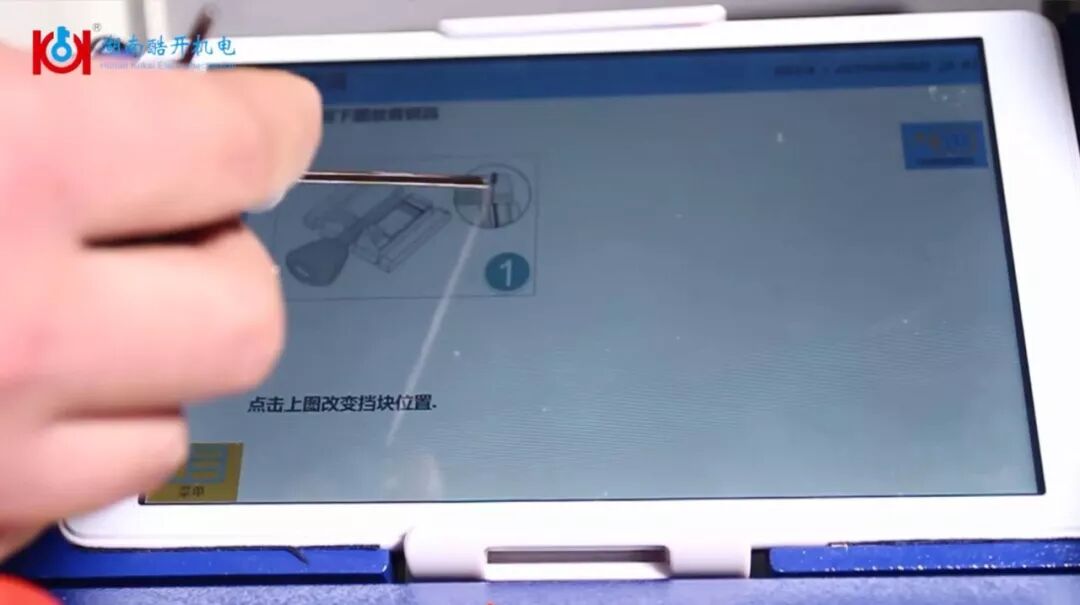

1.3, click on the "detection key data", according to the corresponding icon to place the key, flat milling upper clip, vertical milling lower folder;

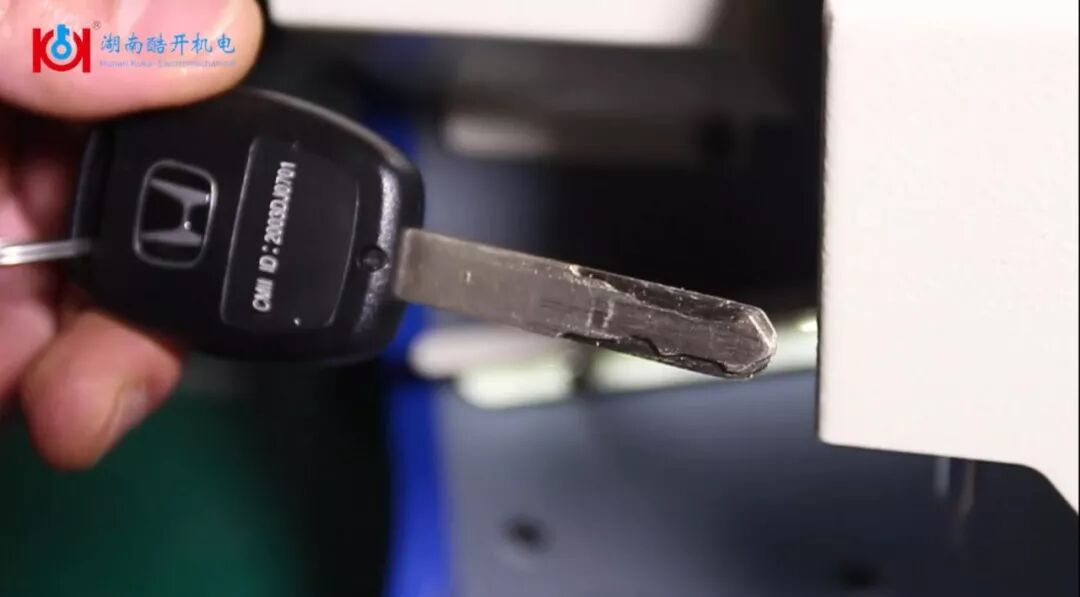

2.1. Take the Honda Key as an example, enter “Data Search” and input “HON66” and select “SILCA”.


2.2, enter the bottom "menu" - "information", view the positioning method;

2.3, click on the "detection key data", in accordance with the corresponding icon to hold the key, flat milling upper clip, vertical milling lower folder;


3.1. Take the VW key as an example. Enter “Data Search” and input “HU66” and select “SILCA”.

3.2, enter the bottom "menu" - "information", view the positioning method;

3.3. Click on "Test Key Data", then place the key in accordance with the corresponding icon, flat-clamp the upper layer, and mill the lower layer. Use the positioning tab to lock the key shoulder and press the key clip in parallel on the fixture;

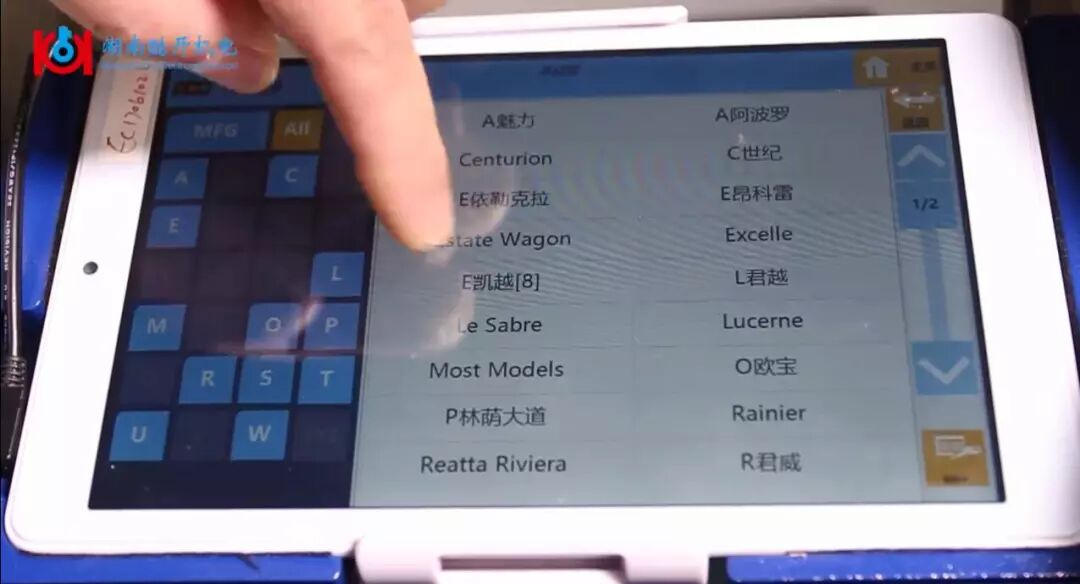

4.1. Take the Buick Key as an example, enter "Car" to input "B" and select "B Buick"-"E Excelle [8]";

4.2, enter the bottom "menu" - "information" to see the positioning method;

4.3, click on the "detection key data", in accordance with the appropriate icon to clamp the key, flat milling upper clip, vertical milling lower folder;

SEC-E9 Key cutting machine Inspection & cutting key

First, the first step to receive the product, check the packaging. After opening the package, please confirm whether the machine and accessories are complete , SEC-E9 standard package of CNC key machine (below).

2. After confirming that the packing items are complete, please read the supporting manual carefully and follow the instructions strictly.
Third, online power : the power switch is connected to the power strip, open the power strip, the screen automatically lights up;
（Please note: This is a Chinese version sec-e9 picture, the function is the same with the overseas version）

appears cool open logo, rotate the emergency stop button, open the next crew;

screen main interface into the main program, on behalf of the screen and the lower position Get in touch.

Fourth, Bluetooth auto pairing takes tens of seconds. Please wait patiently. Do not touch any buttons on the screen . If the Bluetooth is disconnected, please click the Bluetooth icon in the lower right corner to find the corresponding model serial number. Enter the password and click Next to display the connection. The Bluetooth setting is completed.

Poke the following video to play the boot, shutdown, restart operation demonstration.
V. Probe, milling cutter installation and machine calibration :
Machine calibration operation points for attention:
01. Take out 2 probes and tighten them with T-wrench to the right.
02, the calibration block is fixed in the fixed position of the fixture;
03, from the main interface into the "Settings" menu, click "fixture fixture" - "Start", confirm that the calibration block is installed, click the prompt box to calibrate the fixture; 04, fixture calibration is completed , click the "probe" icon to explore Needle calibration;
05, remove the right probe, install the spindle cutter, enter the "settings" interface calibration cutter.
Note:
A. After receiving the new machine or using it for a period of time, please recalibrate the machine so as to ensure the accuracy of the machine;
B. If you reset the distance between the probe and the milling cutter, all fixtures need to be recalibrated;
C. Make sure to record the changed settings for future use;
D. The value of each machine may be different. After replacing the motherboard or upgrading the firmware, please re-execute the calibration process.
E. The data in this interface can be fine-tuned left and right, before and after, which will change the origin of the fixture, but generally do not need to change;
F. The above data is for reference only and is not used as a standard value.
Six, with spoon. Take the example of TOY43 Toyota Camry key with SEC-E9 CNC key machine + 2 in 1 Lee tool as example:
During the operation, please strictly follow the video requirements .
Operation points for attention:
01. Open Toyota Camry car door lock with 2-in-1 tool;
02. Toyota TOY43 door lock 8 pieces, ignition lock 10 pieces;
03, enter the "data search" - "key blank search" - "manual input", from the left third place to enter the combo tool to read the key tooth number ;

04, the flat milling key blanks fixed in the upper fixture, select the "middle speed", "three-terminal positioning" mode, clean the fixture before cutting hygiene, cutting is completed, remove the key, clean the fixture.

This is from china car diag:SEC-E9 Key cutting machine Inspection & cutting key

Should I buy a SEC-E9 key cutting machine?

Hey guys,
I would like to ask you for opinion. I'm starting my business - key cutting, duplicating, ...

I'm thinking to purchase CNC key cutting machine SEC-E9.
What do you think about this machine?
Would it be good enough for the beginning?
Hello, bro.
I personally would strongly recommend that you MUST find a man of his words trust in, then buy that machine. Better with tech support.
If you’re a newbie to key cutting at a good price, i would recommend that you look for a used machine from a reputable brand. The Miracle A9 , Silca Futura , JMA Multicode or Keyline Ninja Total are all machines with similar capabilities. Finding a used one , if possible from a distributer , makes most financial sense. You will have better access to support , cutters and updates.
But, if you have no budget limit, that’s good. Miracle A9, Xhorse Condor mini and SEC-E9 are all good options. (Personally, Condor mini would be the best investment. It’s a Xhorse original device and repairs , service and updates are going to be possible. Also , there is good resale value.) Here’ s a summary of key cutting machines - read it. It’s from real pros. It will help you.
“condor xc-mini is a good budget machine , more suited to the workshop than mobile due to size and weight. it has some bugs , some issues and some gaps , but the quick and easy update for lifetime plus wonderful function are the scoring points. this for what it costs, on the whole a decent machine for the money.

miracle A7 is a reliable machine , has a few bugs but reliable as a light use machine , ideal mobile on a van and space saving .

Viper is a heavy machine and can play up in cold , but is a great heavy duty machine that will give a lifetime of reliable use and receives lifetime updates and as Silca is normally up to date.

Ninja laser - excellent machine , nothing better for me on sx9 keys , laguna 3 , megane 3 , new clio cards using 1234Q5678H series and decoding and cutting clio 3 keys , fast reliable cutting that allows you to pick various styles of cut as well as adjust to half cuts etc , the software can take getting used to due to the functions available on it , adds cylinder keys to your services too , its a well built machine that is like silca updated for life free.

So, Condor mini vs Miracle A7 vs X6 key cutter vs Viper machine vs Ninja laser:
Most key cutting machines will cut a tibbe key on a clamp , but none will in my view cut a perfect tibbe key , a stand alone option will always cut a better key and far quicker too .

I have all of the above machines , so have hands on and regular experience with each machine and use them all , i like them all over the next for certain functions and all do different jobs for me , viper will always be my baby as it was my first , but ninja laser is catching it up fast my only gripe is viper is 30 second boot time , ninja laser is 4 minutes to boot up , but these 2 are in a league of their own

condor xc-mini key machine is a far superior machine to the x6 key cutter, the x6 is a starter machine for very light use and build quality is poor in comparison , i had an x6 to play with for a few months , i wouldn’t buy one having gone hands on with it , condor will last longer and be more reliable of the 2 , its at least being supported and updated which is a big plus and is a far superior build quality to the x6 which at best is a hobby or starter machine .

it isn’t always 100% accurate , but the find biting function on condor is useful if you don’t have instacode to hand , and is a useful addition that makes the condor more useful.
Below is what i tested with Condor machine.
Do Toyota TOY43 all key lost, save you a lot of time
Cut Suzuki, Mazda (key tooth in ignition lock more than door lock) all key lost, simply by enter the key code
Do Hyundai, Kia, Peugeot, and Citroen all key lost, directly program keys
HU101 works fine, HU92 works fine.
HU66 OK, have to do two passes on each side to get the key to work, same with hu100.
Fix the problem that other key cutting machines cut domestic Honda key not accurately

But it is a pity that there is no solution for Renault emergency blade yet”
Note that a simple mechanical key duplicator for cylinder and automotive (not laser) key is a small investment , and will pay for itself. It should be the logical first tool.
After that , a mechanical dimple (and laser) key duplicator may be the next device to buy. I believe these will become commonly available on the used market , because of all the all-in-one machine currently sold.
If you're in the UK , a bit key duplicator should also be high on the wish list. There are machines that combine bit and cylinder key cutting. That might make sense if
If you should invest into "specialty" key machines (Abloy / Tibbe , tubular , ...) depends on the demand in your area. Some shops may have no demand for tubular , but if your town happens to have a Harley dealership , they will be pouring in.
If you are still just starting the business , this will probably be too early to tell.

SEC-E9 CAR KEY MACHINE Description

SEC-E9 CAR KEY MACHINE Description:

One step for upgrade key copy duplicating machine

Power consumption	120W
Dimension	255(w)*360(h)*340(d)mm
Weight	19.5kg
Resolution	X Y Axis:0.005mm,
	Z Axis;0.0015mm
Spindle Revolution	12000+rpm
Temperature	0-40c
Humidity	10-90%
Usage	Automobile Key ,house keys,Motorcycle keys,Dimple keys,Tubular keys
Cutting Speed	Low-Normal-High-Highest Provide
Cutting Area	Vertical/Face Milling Keys
Key Cutting Types	for Both Car Keys and Home Keys

SEC-E9 is a all-in-one key cutting machine and duplicating key machine. Its embedded 8-inch tablet PC screen, this key machine is very convenient to use at night. And thanks to the built-in decoder and key reading capability, the machine is suitable for key duplicating as well as creating key from bitting.
Products Image of key copy duplicating machine

Advantage Feature of Hardware:
1.Equipped with both decoder and cutter.Decoding and cutting can be done at one time;
2.Spindle driven by two spindle belts; High power 27W DC motor with 24V DC
3.8inch capacitive tablet PC as display screen,operate quickly;smoothly;removable,just one step for upgrade.
4.Ball screw to drive Z axis makes cutting powerful and in high precision;
5.Cross roller guided XY axis makes machine more stable and accurate;
6.One automobile key clamp supports to cut both standard keys and laser keys;
7.Replaceable clamp can be changed according to the key types;
8.Wide and bright LED light brings easily operation at night;
9.Light weight, small size, portable for mobile , easy to work outside
10.The power adaptor for SEC-E9 should be 24V and 5A

Feature of Software:
1. Support to cut a new key when original key is lost;
2. Can directly cut a key by key code;
3. Support to cut various types of keys, including vertical milling, flat milling, internal milling and external milling;
4. Support to cut automobile keys, dimple keys, tubular keys, and single-sided domestic keys.
5. FO21 for Ford/for Jaguar Tibbe keys, FO19 LDV keys, latest VA2 for Renault laser keys, latest TOY2 for Toyota/for Lexus laser keys and for BW9 for BMW motorcycle keys are available to cut.
6. 4 levels of cutting speed are provided for your choice according to the material of key blank;
7. Automatic key measurement
New functions of key copy duplicating machine
1.Support to add the key information by customers themselves.
2.Support to have your own key cutting history management.
3.Support to copy standard keys and tubular keys even if database don't have related data;
4.Support to create key profile by yourself;
5.TEN languages for your choice,including English,Spanish,French,German,Italian,Portuguese, Russian,Turkish, Czech and Korean.
Packing & Shipping
-Standard shrinking package,
-Outer carton box size: 54cm*37cm*46cm
-Gross weight:23kg
-We ship the products by DHL,UPS,TNT,FEDEX,EMS .
-We accept to ship by your shipping forwarder.
-After payment is made , we could ship the products within 3 days.



Our Service
1. Any inquiries will be replied within 24 hours;
If nobody answer you online please leave us a message ,we will reply you as soon as possible.
2. Professional manufacturer, Welcome to visit our factory in Hunan;
3. OEM/ODM available;
4. High quality,reasonable & competitive price, fast lead time;
5. Have CE, SGS FCC certificate;
6. Lifelong free software upgrades, almost 2-4 times per year.
7. After-Sale service:
    1). All products will have been strictly Quality Checked in warehouse before packing, including testing the machine and checking accessory quantity;
     2). All products will be well packed before shipping.
     3). All of our product have one-year product quality warranty, free repair and maintenance service within one year and power technology support in whole life.
FAQ
Q1.What's the Payment terms?
A:Shipping after Payment received.We accept T/T,Paypal,Western Union,MoneyGram and Alibaba Trade Assurance.etc.
Q2.How long will you send the paid order?
A: 1-3 working days after payment.
Q3.Do you have return policy?
A: Yes, we have 1 years Warranty.We'll take the cost of broken parts.and we support refund if machine not as described.
Q4:How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q5.What is your terms of packing?
A: Generally,we pack our goods in Standard Shrinking Package and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q6. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q7.How about your delivery time?
A: Generally, it will take 1-3 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q8.Can you produce according to the samples?
 A:OEM order is welcome
Q9. Do you test all your goods before delivery?
A: 1)Yes, we have 100% test before delivery
2). All products will have been strictly Quality Checked in warehouse before packing, including testing the machine and checking accessory quantity;
3). All products will be well packed before shipping.

How to get bitting code with SEC-E9 key cutting machine

There are three options to read get bitting code (also named key code) using SEC-E9 automatic key cutting machine.
What is bitting code?
The bitting code is the translated blind code which the locksmith actually uses to cut each blank key. Example: padlock blind code W123 translates to bitting code 25313, to which the locksmith would cut the key with his code machine by setting it to 25313.
What is SEC-E9 key cutting machine?
SEC-E9 Key Cutting Machine is used for cutting car keys and household keys. It covers cylinder and laser keys with adapters for other key styles.
SEC-E9 portable metal desktop air cooling fully automatic smart key cutting machine is able to cut standard keys and high security keys, such as BMW, VW, HONDA, OPEL,etc, SEC-E9 also supports to cut house keys, including dimple keys, tubular keys, single standard keys and motorcycle keys. Ford Tibbe keys and LDV keys are available to cut. SEC-E9 is a good choice for locksmith since you do not need to buy other small key cutting machines for house keys, just need to buy the corresponding clamps for different key types. Moreover, SEC-E9 can cut a new key without original key. It is the main difference from the traditional manual key cutting machine.
How to get key code using SEC-E9 key cutter?
Option 1: decoding the original key

Tab “decide” to enter the decoding page
Select the most right blue icon as sense key location and “round of”

Check the original key can open the cylinder
Fix the original key on the top level of the clamp
Please pay attention to the key position

Tab “decode” to start decoding the original key and get the bitting code

Option 2: search key code
This is the key code for a Toyota Camry key

Tab “code” and input “5-5-0-6-2” to get the bitting code


Option 3: input bitting code directly
Tab “Input” and input bitting code you get from other ways, such as A cylinder, Lishi tool or InstaCode, etc.

For more details of key cutting machine, please go to http://www.chinacardiags.com/producttags/key-cutting-machine.html
